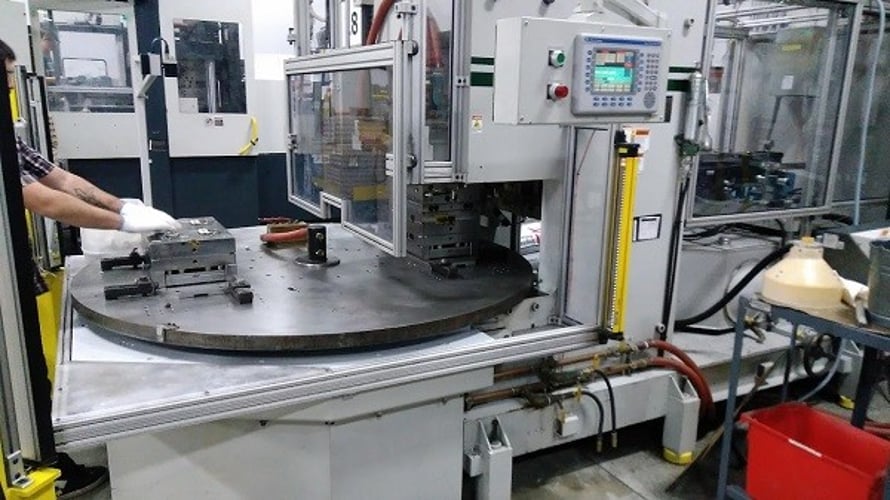

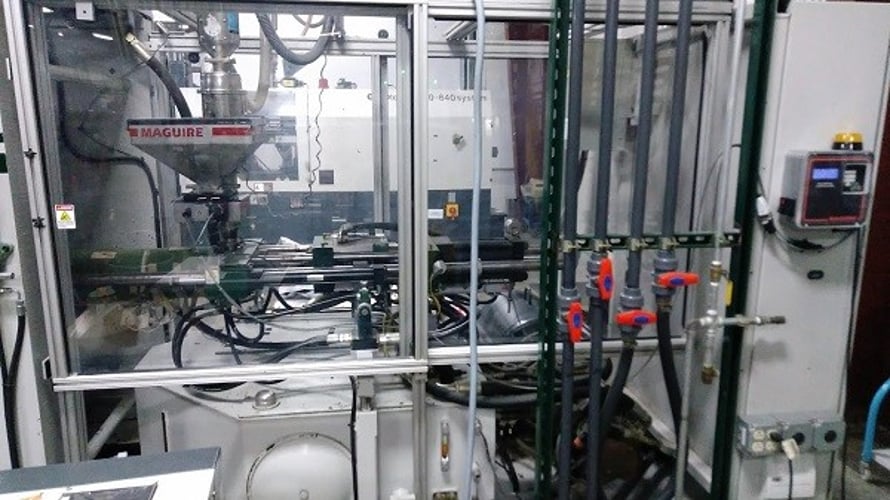

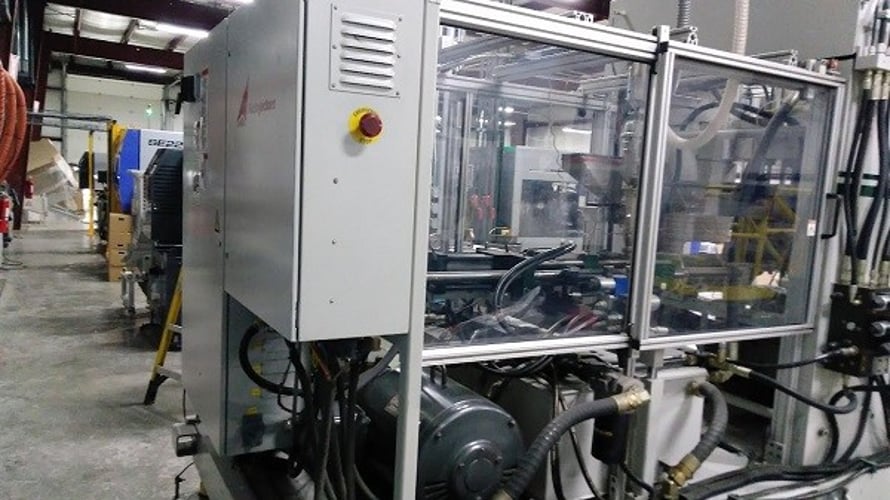

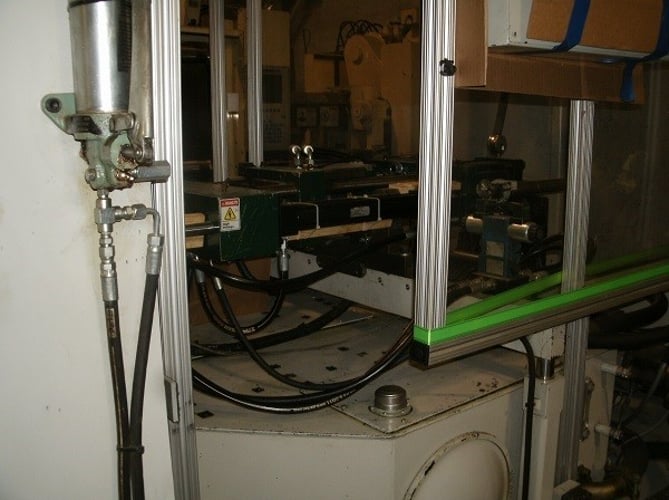

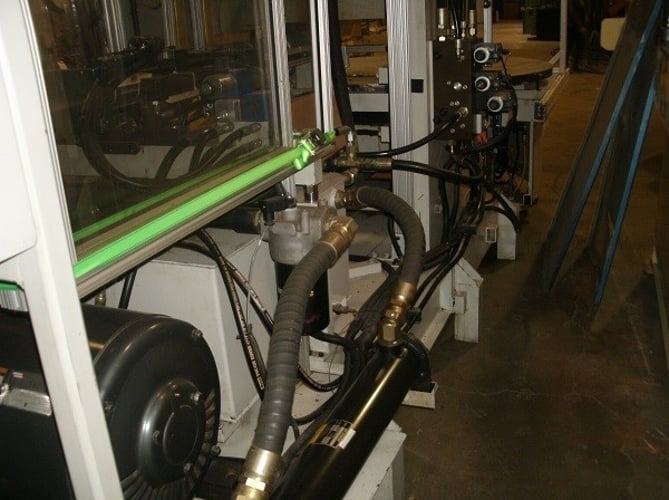

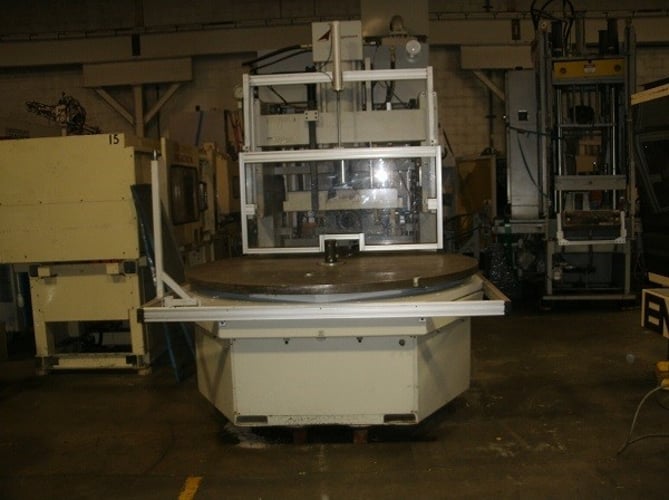

130 Ton Autojector Vertical Rotary Injection Mold Machine
Model WDTHC130-4 Special
S/N AJ002620-0300
Year:  2000
SPECIFICATIONS:
- Shot size:  9.93 oz.
- Platen size:  16" x 36"
- Stroke:  10"
- Daylight:  27"
- Mold height:  18" min.
- Rotary table size:  77" dia.
- Centerline:  adjustable parting line
EQUIPPED WITH:
- 2 Sta. Rotary Table

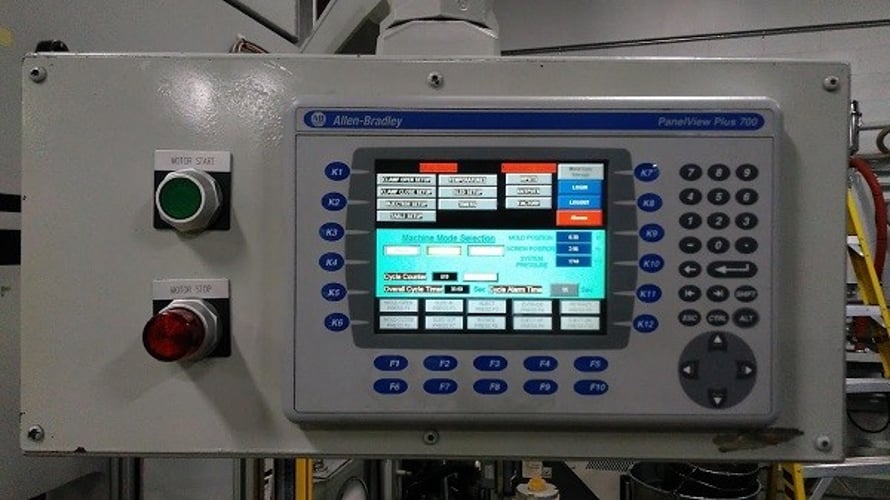

- Allen Bradley Panel View Plus 700 Control
- Light curtain
- New motor
- New pump
- 460/3/60 - 122 max. AMPS
- 75 HP motor
Hours - 14,272.6
NOTE:  Machine retrofitted in 2013 with new injection unit, new Allen Bradley Control System and
rotary table.  Retrofit done by QSI Automation.
