30 Ton Dry Coolers WC Chiller w/Conair PT1400 Pump Tank
Model WPC-S30SR-120T
S/N J3282
CHILLER & PUMP TANK CAN BE SOLD SEPARATELY - CALL FOR PRICING

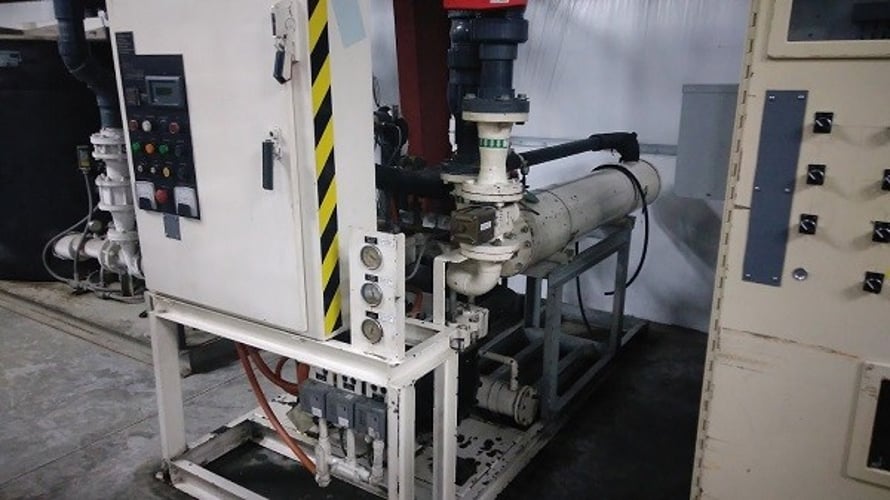

SPECIFICATIONS - DRY COOLERS WC CHILLER:
- 29.8 Ton Capacity when cooling 63.4 gpm of 66 PSI water from 71.3 degrees to 60 degrees
  using 89 gpm of 85 degree cooling water, 65 degrees max. supply water temperature
- 1) Insulated copper-brazed stainless steel plate evaporator with water inlet strainer
- 1) 30 HP Copeland Discus semi-hermatic reciprocating refrigerant compressor with unloaders,
  crankcase heater adn oil pressure safety switch
- 1) Shell & tube type refrigerant condensor with pressure relief valve and 2-way pressure
  actuating water regulating valve
- Refrigeration piping specialties including suction and discharge line vibrasorders, replaceable
  core filter-drier, liquid solenoid valve, hot gas bypass, suction accululator
- Safety controls include high and low refrigerant pressure and compressor oil pressure, low
  water temperature, low water flow, low water level
- NEMA 12 electrical control panel, IEC rotry fused disconnect, IEC compressor contactor &
  pump starter, Type J branch circuit fusing
- Allen Bradley Micrologix PLC

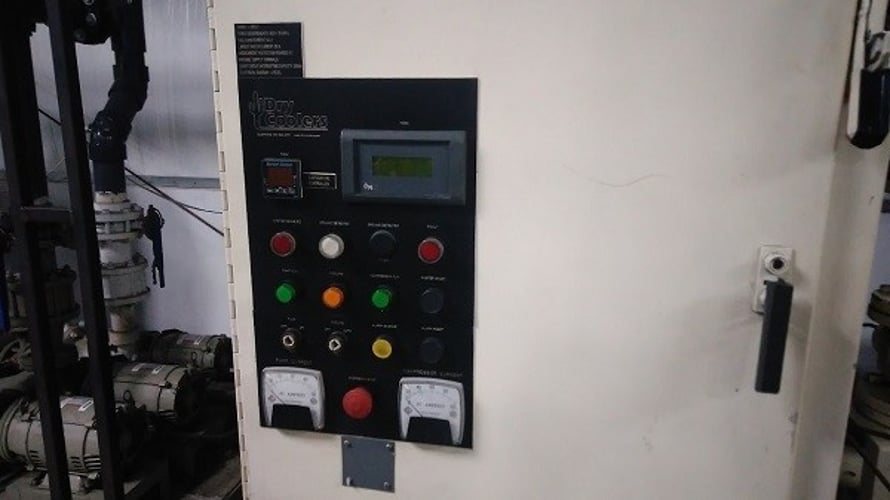

- Operator panel with function keys, LED status indicators and LCD message display
- R134A Refrigerant
Reconditioned in 2004.

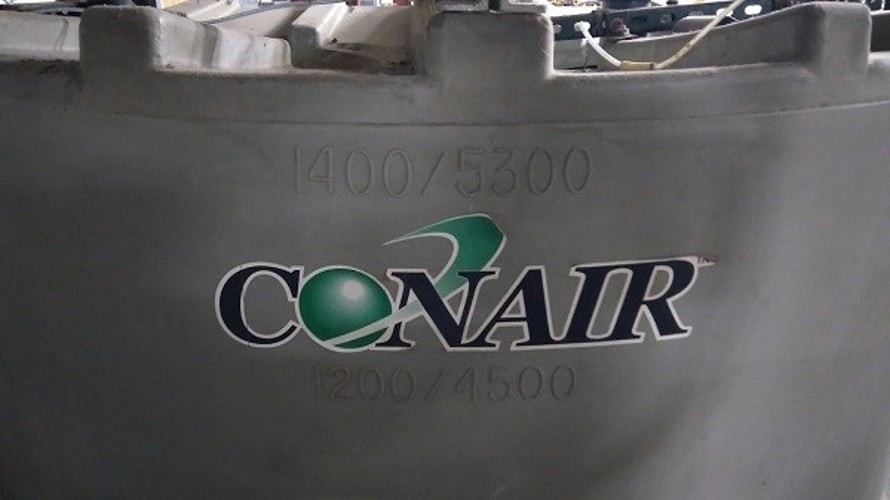

CONAIR PT1400 PUMP TANK:
Model 1400-2
S/N 54102
460-3-60 - 18 FLA

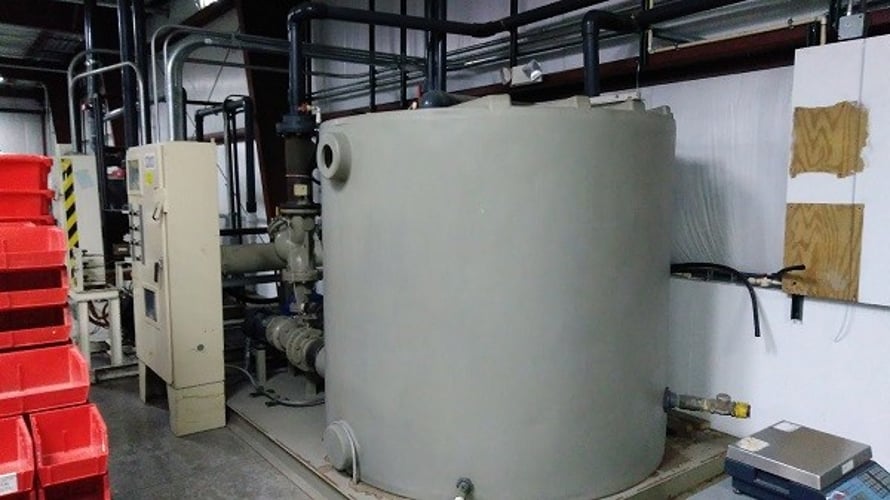

- 1400 gal. dual compartment tank

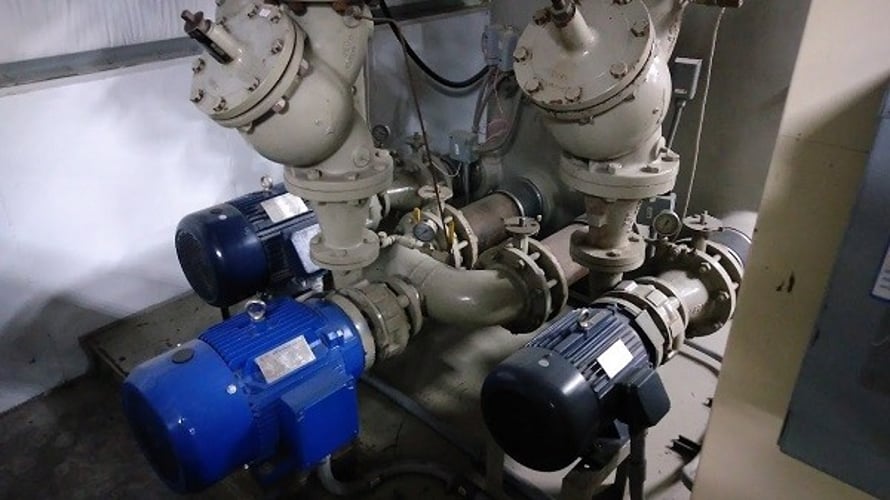

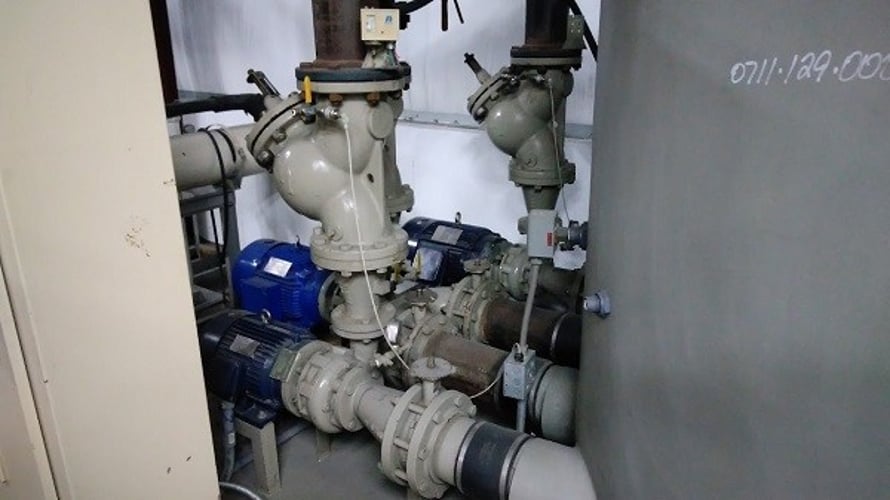

- Pumps:  North American Electric 7.5 HP, 3525 RPM, 208-230-460/3/60
                 North American Electric 15 HP, 3515 RPM, 208-230-460/3/60
                 Elektrimax 15 HP, 3540 RPM, 230-460/3/60
SPARE PUMPS:
- Baldor 15 HP, 3450 RPM, 208-230-460/3/60
- Baldor 25 HP, 3525 RPM, 208-230-460/3/60
- US Electrical Motors 25 HP, 3520 RPM, 208-230-460/3/60
