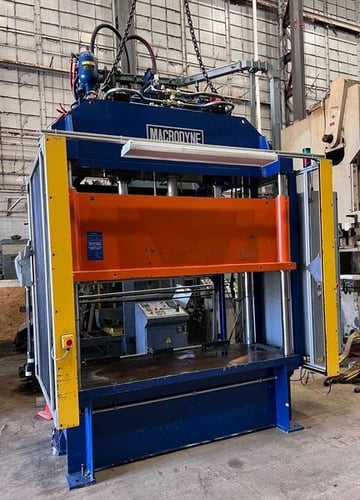

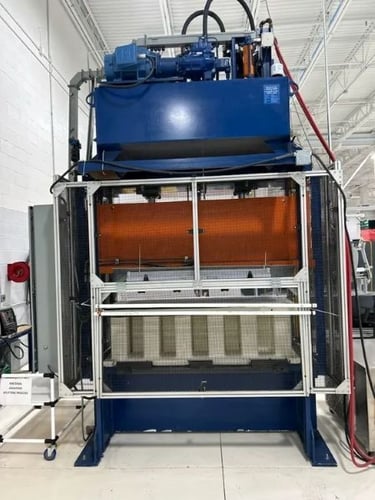

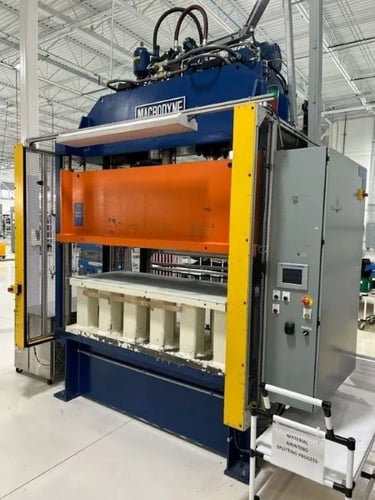

50 Ton Macrodyne 4-Post Hydraulic Press
Model MPZ-50

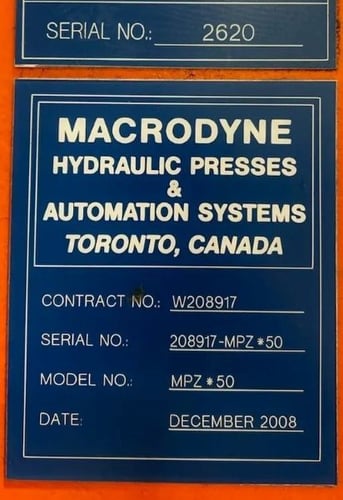

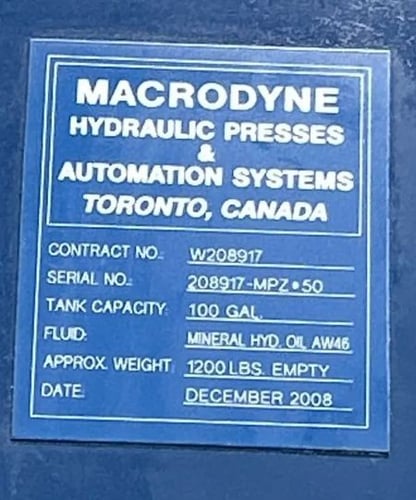

S/N 208917-MPZ*50
Year:  2008
SPECIFICATIONS:
- Capacity:  50 ton
- Stroke:  20"

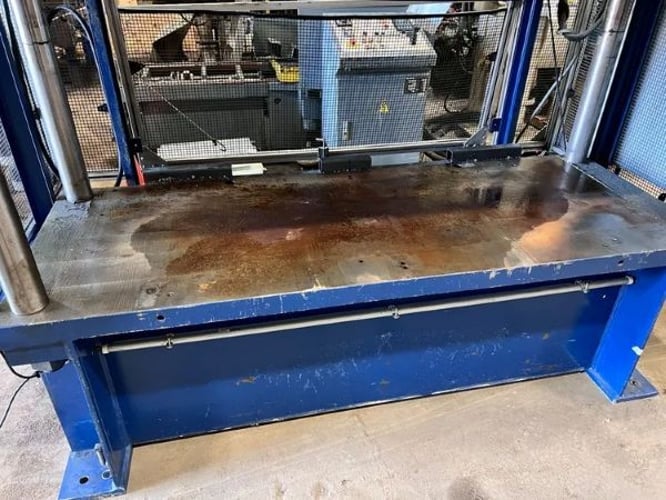

- Bed area:  72" LR x 30" FB
- Daylight opening:  36"
- Pressing force:  50 ton
- Maximum return force:  1.5 ton
- Usable bed size:  72" LR x 22" FB
- Distance between columns:  72" LR x 22" FB
- Open daylight:  36"
- Closed daylight:  16"
- Speeds - approach:  19.5@5.0/second = 3.90 seconds
                  pressing:  0.5" @ 0.5"/second = 1.00 seconds
                  return:  20.0" @ 5.0/second = 4.00 seconds
- Shifting time etc: = 1.00 seconds
- Total dry cycle = 9.90 seconds
- Hydraulic system operating pressure:  2,600 PSI
- Electrics:  480/3/60

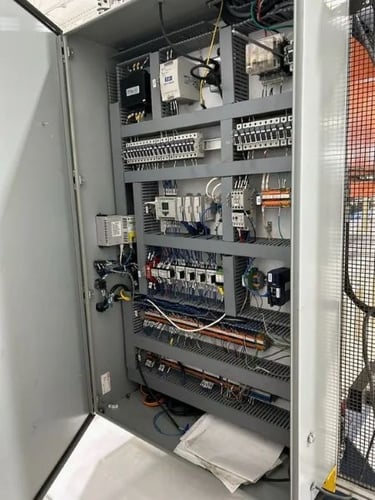

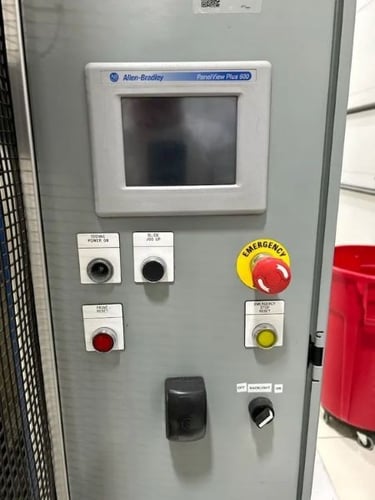

- Controls:  Allen Bradley Panel View 600
- Control features:  Programmable pressing speed, slide position and monitoring via
position transducer, multi-mode capability, programmable dwells, jog function, security
screen, fault diagnostics.
NOTE:  Chiller unit in video NOT INCLUDED.
AVAILABLE AT ADDITIONAL COST:
- 70" LR x 30" FB x 19-1/2" H Steel Spacer..........POR
